    12~1000V/48~1000V AC Voltage Detector Pen Sensitivity Adjustable With NCV Function

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8909+
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    12~1000V/48~1000V AC Voltage Detector Pen Sensitivity Adjustable With NCV Function

    12~1000V/48~1000V Double Range Of Voltage Detection Adjustment , AC Voltaget Detector Pen With CE RoHS


    Features of Detector Pen


    • Humidity: < 85%RH
    • Frequency: 50-60Hz
    • Flash Light: White LED
    • Auto Power Off: Yes
    • Alarm Mode: Sound and light
    • Operating Temperature: 32 to 122F (0 to 50degree)
    • Storage Temperature: -4 to 140F (-20 to 60degree)
    • Voltage Intensity: 12V to 1000V AC / 48V to 1000V AC
    • Battery: 2 * 1.5V AAA Batteries (Battery not included)

    SPECIFICATION
    AC voltage detection rangeAbout12~1000V/48~1000V
    Frequency50Hz/60Hz
    Alarm ModeSound and Light Alarm
    TorchWhite LED
    Auto Power Off
    Low Battery Indication
    Neutral/Live Wire JudgementAccording to the signal strength, strong signal is live wire
    NCV Intensitylow, mid, high
    NCV Intensity Indication ModeThe instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low, moderate or high sensitivity
    Service Temperature0~40℃
    Storage Temperature-10~50℃
    Altitude<2000m
    SPECIAL FUNCTION
    ScrewdriverFoldable Screwdriver
    GENERAL
    Power Supply2x1.5V AAA batteries
    WeightAbout45g
    Size156mmx20mmx20mm
    Safety RatingEN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V

    Product Description of Detector Pen

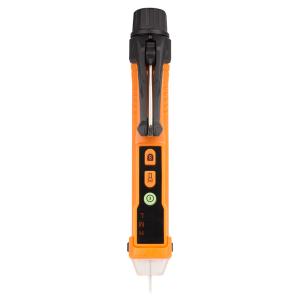

    PM8909+ is a non-contact ac voltage tester with screwdriver. It measures the corresponding signals of different intensities according to the different sensitivities automatically selected, and the strongest signal is the live wire. This tester also has functions such as flashlight, automatic shutdown, battery undervoltage indication, sound and light alarm, etc.


    • Distinguish the Neutral wire and Live wire automatically.

    • Sound and LED alarm, through the different alarm sound and different color LED to express high, Medium and low voltage intensity.

    • Professional AC Voltage Detector with NCV Detection.

    • Range of Voltage Detection is from 12V to 1000V AC,48Vto 1000V AC.

    • Double sensitivity adjustment of AC voltage.

    • Sound and light instructions.

    • Rotatable Battery Cover, Replacing the battery easier.

    • Its designed is according to EN61010-1-2-030, EN61010-2-033, and CAT.III1000V Concerning Safety Requirements.

    • Equiped with Foldable Cross Screwdriver or Slotted Screwdriver.

    • Mini and compact pen, easy to carry.


    Detailed Images of Detector Pen
