| Brand Name : | PEAKMETER |
| Model Number : | PM2008B |
| Certification : | CE |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 150,000 Pcs Per Month |
| Delivery Time : | 5-40 work days |
| Specifications | Range | Accuracy |
| DC Voltage | 6V/60V/600V | ±(0.5%+3) |
| AC Voltage | 6V/60V/600V | ±(0.8%+5) |
| AC Current | 6A/60A/600A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.0%+3) |
| 60MΩ | ±(2.0%+3) | |
| Capacitance | 10nF/100nF/1uF/10uF/100uF | ±(3.0%+5) |
| 1mF/10mF | ±(4.0%+5) | |
| 100mF | ±(5.0%+5) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(3.0%+2) |
| Temperature | -20℃~1000℃ | ±(1.0%+2) |
| -4℉~1832℉ | ||
| Features | ||
| Display | 6000 counts | |
| Data Hold | √ | |
| Back Light | √ | |
| Inrush Current test | √ | |
| LPF | √ | |
| MAX/MIN | √ | |
| Flash Light | √ | |
| Diode Test | √ | |
| Continuity Test | √ | |
| Auto Power Off | √ | |
| General | ||
| Power Supply | 3*1.5V AAA Battery | |

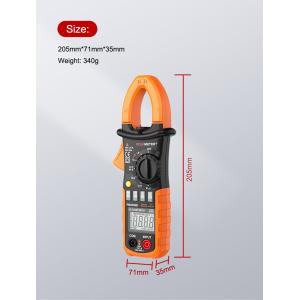

| Size | 205mm*71mm*35mm | |
| Jaw Size | φ23mm | |
| Weight | 340g | |
| Safety Rating | EN61010-1, EN61010-2-032, EN61326, CAT Ⅲ 600V | |
PM2008B is a AC digital clamp meter, it is stable, safe and reliable. The circuit of the instrument takes integrated circuit as the cire and is equipped with a full range overload protection circuit, AC/DC voltage, temperature, frequency, resistance, capacitance, diode and open-closed circuit measurement. This clamp meter has MAX/MIN, LPF measurement, auto range and manual range switch, inrush current measurement, backlight, and data hold function. It is a superior instrument special for electricians.




We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.
Our R&D team have over 20 years R&D experience in instrument industry .
Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
|
